Floor Framing


Floor framing refers to the structural framework that supports the floor of a building. It consists of a system of beams, joists, and subflooring that work together to distribute the weight of the building and its occupants to the foundation.

The process of floor framing involves several steps:

1. Foundation Preparation:
Before the floor framing can begin, the foundation of the building must be prepared. This includes excavating the site, pouring the foundation walls, and ensuring a level and stable base for the floor framing to sit on.

2. Sill Plate Installation:
The sill plate is a horizontal wooden or concrete member that sits on top of the foundation walls. It acts as a connection between the foundation and the floor framing. The sill plate is securely anchored to the foundation using anchor bolts or other fasteners.

3. Floor Joist Layout:
The floor joists are horizontal beams that span the width of the building and support the subfloor. The layout of the floor joists is determined by the building plans and specifications. They are typically spaced at regular intervals, such as 16 inches or 24 inches on center, depending on the design requirements.

4. Joist Installation:
The floor joists are installed by placing them perpendicular to the sill plate and securing them in place. Joist hangers or framing connectors are used to attach the joists to the sill plate and provide additional support. Proper spacing and alignment of the joists are critical to ensure a level and structurally sound floor.

5. Subfloor Installation:
Once the floor joists are in place, the subfloor is installed on top of them. The subfloor is typically made of plywood or oriented strand board (OSB) and provides a stable surface for the finished flooring materials. The subfloor is attached to the joists using nails, screws, or construction adhesive.

6. Rim Joist and Blocking:
Rim joists are installed along the perimeter of the floor framing to provide additional support and stability. Blocking, which are short pieces of framing material, may also be installed between the floor joists to prevent them from twisting or warping.

7. Floor Framing Inspection:
After the floor framing is complete, it is important to have it inspected by a building inspector to ensure compliance with local building codes and regulations. The inspector will check for proper joist spacing, structural integrity, and connections to the foundation.

8. Additional Floor Components:

Depending on the design and requirements of the building, additional components such as bridging, insulation, and vapor barriers may be installed between the floor joists to improve structural stability, energy efficiency, and soundproofing.

Floor framing is a critical component of the building's overall structural integrity. It must be designed and constructed to support the anticipated loads and provide a level and solid foundation for the building's occupants. Proper construction techniques, adherence to building codes, and regular inspections are essential to ensure a safe and durable floor framing system.

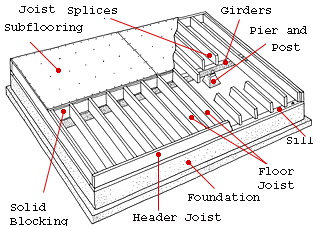

Floor Framing
